honed hydraulic cylinder tube
"
Tubos de cilindro hidráulico afilados de precisión de tubo sin costura tirado en frío con tolerancia ISO H8/H9 ID y Ra max 0,40 μm para aplicaciones automotrices
Honed Hydraulic Cylinder Tubing — Precision Cold-Drawn Seamless Tube for Automotive Material Honed hydraulic cylinder tubing is a precision cold-drawn seamless steel tube whose inside diameter (ID) is honed or skived & roller burnished (SRB) to achieve tight dimensional tolerances and a very smooth bore—critical for hydraulic cylinders where sealing performance, friction, and service life depend heavily on ID quality. Typical steel families include EN precision grades (E235 /

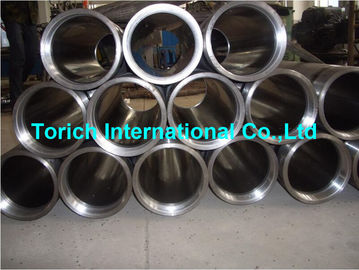

Tubo afilado con piedra EN10305-2 del cilindro hidráulico con el tubo de acero retirado a frío soldado con autógena de la precisión
EN10305-2 DOM Hydraulic Cylinder Tube for Oil and Pnuematic Cylinders E155 E195 E235 E275 E355 EN10305-2 Welded Precision Cold Drawn Steel Tubes Honing, Skiving, Roller Burnish Applications: for Auto industry for machinery use Oil Cylinder Tube Motorcyle shock absorber Auto shock absorber innder cylinder Telescopic Cylinders Size range: ID.: 20-650mm W.T.:1-50mm L:max12000mm Steel Grade: E155, E195, E235, E275, E355. S45C Steel Grade and Chemical Compositions Steel Grade C Si
DIN2391 Tubo de cilindro hidráulico afilado de acero sin costuras tirado en frío
Products Description TORICH DIN2391 Cold Drawn Seamless Steel Honed Tube for Hydraulic Cylinder BK+S Standard DIN2391, EN10305, DIN17175 etc Size OD: 40-400mm WT: 5-40mm Length : Random (5-7m) or Fixed length as per order of confirmation Material ST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45, CK20, 16Mn, 27SiMn Supply Condition BK(+C), BK+S (+SR) Technology Honed & SRB (SKIVED AND ROLLER BURNISHED ) Polishing To 0.4Ra Max Tolerance Inner Diameter: ISO H8 Wall

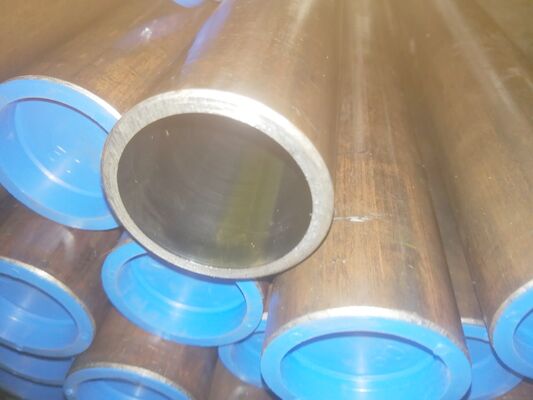

EN10305-1 alrededor afiló con piedra el tubo del cilindro hidráulico
EN10305-1 Seamless Round Hydraulic Cylinder Honed Tube Standard: EN10305-1 Steel Grade: E 235 E355 Etc Material: Carbon And Alloy Steel Grade Dimension: O.D.:6-380mm W.T.:1-35mm L:max12000mm WT Tolerance: +/-0.15mm Production Method: Seamless Cold Drawn/Rolling Delivery Condition: +Cc +LCc +SR +Ad +N NBK Applications: Hydraulic Cylinder/Oil Cylinder Tube/Excavator Chains and Parts a: Rm: tensile strength; ReH: upper yield strength; A: elongation after fracture b: 1Mpa=1N/mm2

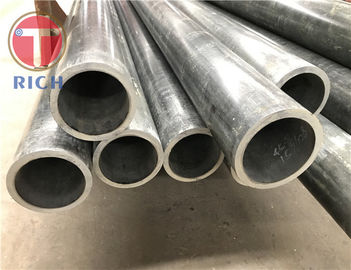

El tubo del cilindro hidráulico de AISI/afiló con piedra el diámetro 46m m de la tubería del cilindro hidráulico 38m m
TORICH Diameter 46mm 38mm AISI 1020 1010 4130 34CrMo4 DIN St35.8 St52 Seamless Carbon Hydraulic Steel Pipe Cylinder Honed Tube Manufacture Method: Cold drawn, hot rolled+deep hole bored Certification: ISO9001, SGS, Material: Carbon steel,alloy steel, stainless steel Standard&Grade: DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc. Size Range: ID of 300mm max for cold

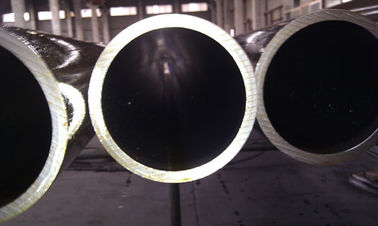

Grueso de pared afilado con piedra retirado a frío inconsútil de encargo de la tubería 30m m del cilindro hidráulico
Seamless cold drawn/rolling steel tubes Steel tubes for precision applications. Technical delivery conditions. Size range: Cylinder ID: 20-400mm O.D.:6-500mm W.T.:1-30mm L:max12000mm Steel Grade and Chemical Compositions: Steel Grade C Si Mn P S Al Steel name Steel number max max max max max min E215 1.0212 0.10 0.05 0.70 0.03 0.025 0.025 E235 1.0308 0.17 0.35 1.20 0.03 0.025 - E355 1.0580 0.22 0.55 1.60 0.03 0.025 - Mechanical properties at room temperature Steel grade

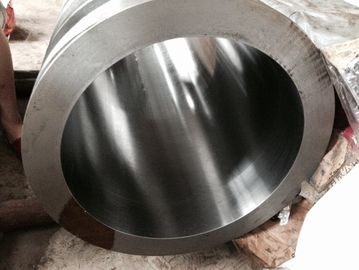

EN de acero retirado a frío soldado con autógena precisión afilado con piedra 10305-2 del tubo del tubo del cilindro hidráulico
Honed Hydraulic Cylinder Tube wtih Precision Welded Cold Drawn Steel Tube EN10305-2 DOM Hydraulic Cylinder Tube for Oil and Pnuematic Cylinders with steel grade E155 E195 E235 E275 E355 EN10305-2 Welded Precision Cold Drawn Steel Tubes Honing, Skiving, Roller Burnish Applications: for Auto industry for machinery use Oil Cylinder Tube Motorcyle shock absorber Auto shock absorber innder cylinder Telescopic Cylinders Size range: ID.: 20-650mm W.T.:1-50mm L:max12000mm Steel Grade

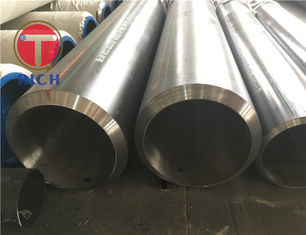

Tubo inconsútil del cilindro hidráulico de TORCIH GB 18248 37Mn 30CrMo para el cilindro de gas
TORCIH GB 18248 37Mn 30CrMo Seamless Hydraulic Cylinder Tube for Gas Cylinder SPEC: Material:37Mn 30CrMo 34CrMo4 35CrMo Diameter : 4-1200mm Wall thickness : 0.3-200mm Length : 4-6m Upon customer's request Production method: Hot rolling(extrusion), cold drawn, cold rolled Delivery condition: BK,GBK,NBK Chemical composition of Seamless Steel Tube for GasCylinder: Steel Grade Chemical composition C Si Mn P S P+S Cr Mo V Ni Cu 37Mn 0.34-0.40 0.10-0.30 1.35-1.65 ≤0.030 ≤0.030 ≤0
El tubo de cilindro hidráulico tirado en frío ASTM A519 40-400 mm ID
ASTM A519 DOM Tube For Hydraulic Cylinder And Pneumatic Cylinder Standard : GB/T3639, GB/T8713, EN10305-1:2002, EN10305-2:2002, ASTM A519-2006, ASTM A513-2007, GB/T1591-2008, GB/T17396-2009 Material: 20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355 Hydraulic and pneumatic cylnder tube standard/size/tolerance Working method Tube ID (mm) Length (m) Straightness (mm/m) Tolerance on ID Tolerance on WT ID Roughness (um) Cold Draw 40-400 ≤12m 0.2-0.5 / ±5% ≤1.6 Cold Rolled 40-150 ≤12m 0
