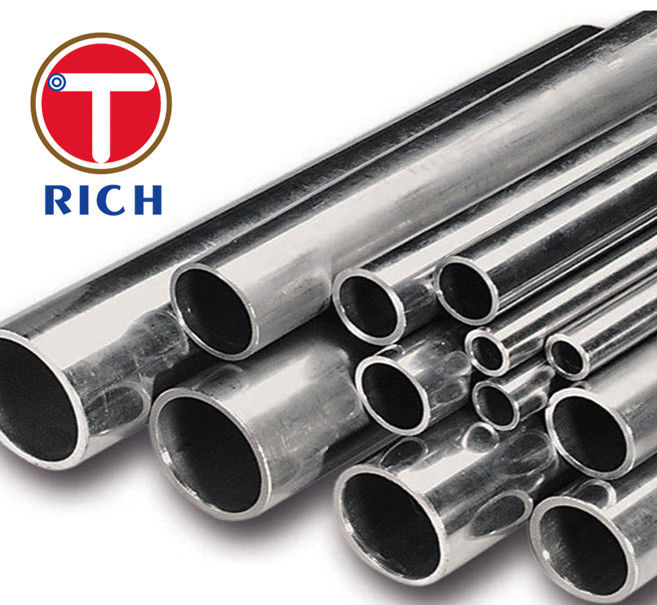

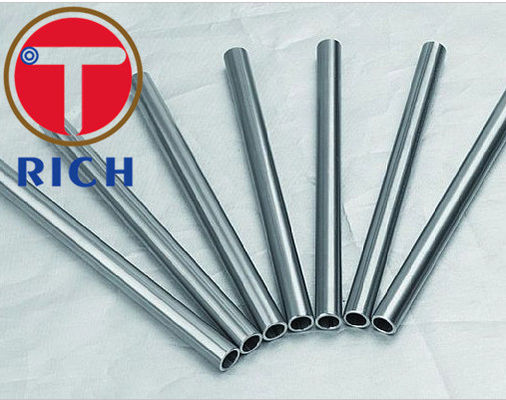

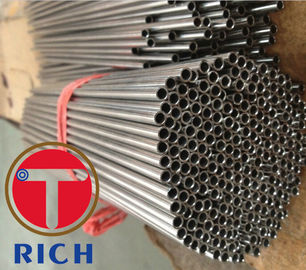

Tubo/tubo del acero inoxidable X5crni1810 del dinar 11850 inconsútil para la industria alimentaria
Detalles del producto
acero inoxidable ronda tubo
,acero inoxidable del tubo
DIN 11850 Tubos de acero inoxidable para la industria alimentaria dimensiones,materiales
Materiales para la fabricación:
X5CrNi1810 - número de material 1.4301
X6CrNiMoTi17122 - número de material 1.4571
X6CrNiMo17122 - el número de material 1.4401
X2CrNiMo18143 - el número de material 1.4435
X6CrNiTi1810 - el número de material 1.4541
Cantidad mínima de pedido: 5 MT
Términos de pago: L/C o T/T
Capacidad de suministro: 700 MT/mes
Tiempo de entrega: FOB, CFR, CIF son viables
Entre 30 y 60 días, según la cantidad de PO
TABLA 1 Las dimensiones y las desviaciones permisibles de las tuberías
| El valor nominal | Serie | Las normas de seguridad | Peso | el comentario | ||||
| 1 | 2 | 3 | OD.dev | El espesor de la pared, dev | ||||
| 10 | 12 |
|
| ± 012 | 1.0 | ± 10% | 0.27 | Las tuberías con espesores de pared superiores a los de la serie 1 se seleccionarán de las normas de tuberías existentes para este rango de diámetro nominal. |
|
| 13 |
| ± 03 | 1.5 | ± 10% | 0.43 | ||
|
|
| 14 | ± 03 | 2.0 | ± 10% | 0.60 | ||
| 15 | 18 |
|
| ± 012 | 1.0 | ± 10% | 0.42 | |
|
| 19 |
| ± 03 | 1.5 | ± 10% | 0.66 | ||
|
|
| 20 | ± 03 | 2.0 | ± 10% | 0.90 | ||
| 20 | 22 |
|
| ± 012 | 1.0 | ± 10% | 0.51 | |
|
| 23 |
| ± 03 | 1.5 | ± 10% | 0.81 | ||
|
|
| 24 | ± 03 | 2.0 | ± 10% | 1.10 | ||
| 25 | 28 |
|
| ± 015 | 1.0 | ± 10% | 0.66 | |
|
| 29 |
| ± 1% | 1.5 | ± 10% | 1.03 | ||
|
|
| 30 | ± 03 | 2.0 | ± 10% | 1.40 | ||
| 32 | 34 |
|
| ± 015 | 1.0 | ± 10% | 0.82 | |
|
| 35 |
| ± 1% | 1.5 | ± 10% | 1.26 | ||
|
|
| 36 | ± 1% | 2.0 | ± 10% | 1.70 | ||
| 40 | 40 |
|
| ± 02 | 1.0 | ± 10% | 0.97 | |
|
| 41 |
| ± 1% | 1.5 | ± 10% | 1.50 | ||
|
|
| 42 | ± 1% | 2.0 | ± 10% | 2.00 | ||
| 50 | 52 |
|
| ± 02 | 1.0 | C10 por ciento | 1.26 | |
|
| 53 |
| ± 1% | 1.5 | ± 10% | 1.90 | ||
|
|
| 54 | ± 1% | 2.0 | ± 10% | 2.60 | ||
| 65 | 70 |
|
| ± 03 | 2.0 | ± 10% | 3.43 | |
| 80 | 85 |
|
| ± 03 | 2.0 | ± 10% | 4.16 | |
| 100 | 104 |
|
| ± 03 | 2.0 | ± 10% | 5.03 | |
| 125 | 129 |
|
| ± 04 | 2.0 | ± 10% | 6.36 | |
| 150 | 154 |
|
| ± 04 | 2.0 | ± 10% | 7.49 | |
Normas citadas:
DIN 2413 Tubos de acero cálculo del grosor de la pared para soportar la presión interna
DIN 17456 Tubos circulares sin costura de acero inoxidable para requisitos generales especificaciones técnicas
Certificados de ensayo de materiales DIN 50049
-
