Tubería de acero especial

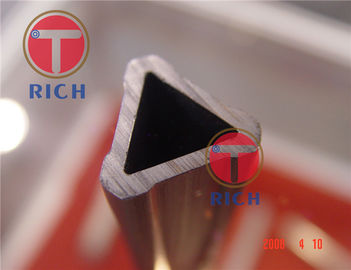

Products Description TORICH DIN 2391 Q235 / Q345 Engineering Special Triangle Shape PTO Tube For Algricultural Machineries Standard DIN 2391 Size OD: 15-80mm, WT: 1 - 14 mm, Length: 1-9m or cutting as you require Material 16Mn, 10#, 45#, Q235, Q345, Q195, 20# Hardness HB170-217 Application These pipes are mainly used for agricultural machine PTO shaft Tolerance: we can control it within OD/Thickness +/-0.1mm Quality inspection: 1.Heat pipes inspection:to measure the outer

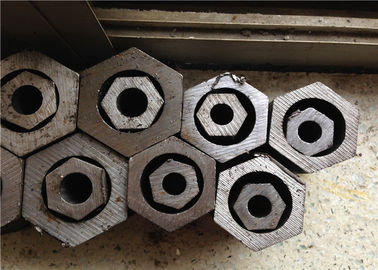

ASTMA1045 Alloy Special-Shaped Perforated Hollow Hexagonal Steel Tube Hex Hollow Bars Size 6-102mm Material :1010 1020 1045 20Cr 1035 Q195Q235etc. Length:3m or 6m Shape: Outside round Inside Hexagonal MOQ: 3 tons or 5 tons Packaging:In bundles. Application: General and Mechanical structure, construction and liquid conveyance Tolerance: Width ≤30mm:+/-0.20 mm 30-50mm:+/-0.30mm 50-75mm:+/0.7% ＞75mm:+/-0.8% Wall thickness: S ≤1.0mm +/-0.12mm 1-3.0mm +12.5% -10% ＞3.0mm +/-10%

DIN 2391 16Mn 10# 20# Seamless Carbon Triangle Tube PTO Tube Product Description Product details Material:16Mn,10#,45#, Q235,Q345,Q195,20# Section Shape:triangular/hexagonal/triangular Place of Origin: Liaocheng, China (Mainland), Phoenix industrial park, Liaocheng city, Shandong province, China Secondary Or Not:Non-secondary Application: rotavator Technique:Cold Drawn Surface Treatment:none Alloy Or Not:Non-alloy Size: 53.6*3.8&44.6*5.5mm and 43.4*3.3/36.1*4.4mm etc OD: 15

ASTM A500 Cold-Formed Welded and Seamless Carbon Steel Special Shape Tubing for Structure Seamless and Welded Square Steel Tubes Carbon Steel ST37.0,ST44.0, Q235,Q345, SAE1010,SAE1020,SAE1045 Seamless and welded Square steel tubes for application of Structure and scaffolding use Production method: Seamless Cold Drawing ERW Welding Size range: Square tubes O.D. :20-20 to 500-500mm W.T.:1-24mm L:max12000mm Rectangle tubes O.D. :20-30 to 400-600mm W.T.:1-24mm L:max12000mm

Lemon Pipe Type Triangle Steel Tube Special Steel Pipe for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube Special Steel Pipe for PTO Agricultural Drive Shaft 1010 1020 Product information WT: 0.5-50mm OD: 5-420mm Length: 1-12000mm,depends on customer's requirement. Material: SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355 Standard: BS, JIS, GB, DIN, ASTM, API Shape: Lemon Aplication: Lighting,furniture,medical equipment

Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft Products Description: for Agricultural Drive Shaft Carbon Steel E235 E355 PTO Shaft-2 Lemon Tube Chemical Compositions: Standard Steel Grade C Si Mn P S EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025 E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025 E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025 DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025

Products Description: for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube Chemical Compositions: Standard Steel Grade C Si Mn P S EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025 E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025 E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025 DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St52 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025 GB/T 3639 10 0.07-0.13 0.17-0.37 0.35-0.65

ASTM A106 Hot Rolled Galvanized Square/Rectangular Steel Pipe/Tube Square / Rectangular Galvanized steel pipe Product Name Square/ Rectangular Steel Pipe Material Carbon Steel Surface Hot dip galvanized Standard DIN GB ISO JIS Grade Q195,Q215,Q235,Q345,Gr.B Thread As customer's requirement Used Construction, Fluid used, building industry, machinery Packing Details : Bundles, With two nylon handle strip for each bundles Delivery Details : Depending on the QTY, normally one

Products Description: 304 316 Seamless Welded Stainless Rectangular Steel Pipe Square Tube Steel Grade/Steel Material: Mechanical Requirement Grade: TP304 TP304L TP304LN TP316 TP316L TP316LN TP316LN TPXM-29 TP304N UNS S30400 S30403 S30453 S31600 S31603 S31653 S31653 S24000 S30451 C, max 0.08 0.035 0.035 0.080 0.035 0.035 0.035 0.08 0.080 Mn, max 2.00 2.00 2.00 2.00 2.00 2.00 2.00 11.5-14.5 2.00 P, max 0.045 0.045 0.045 0.045 0.045 0.045 0.045 0.060 0.045 S, max 0.030 0.030 0
